Problem description

Thermal and hydraulic results improvement by adjusting structural and operating parameters of a radiant system heater.
For more information, see: [[{{{link}}}]] Design of radiant heating floor and wall installation

Solution

PARAMETERS TAKEN INTO ACCOUNT WHEN DESIGNING A SYSTEM AND CONSTRUCTING

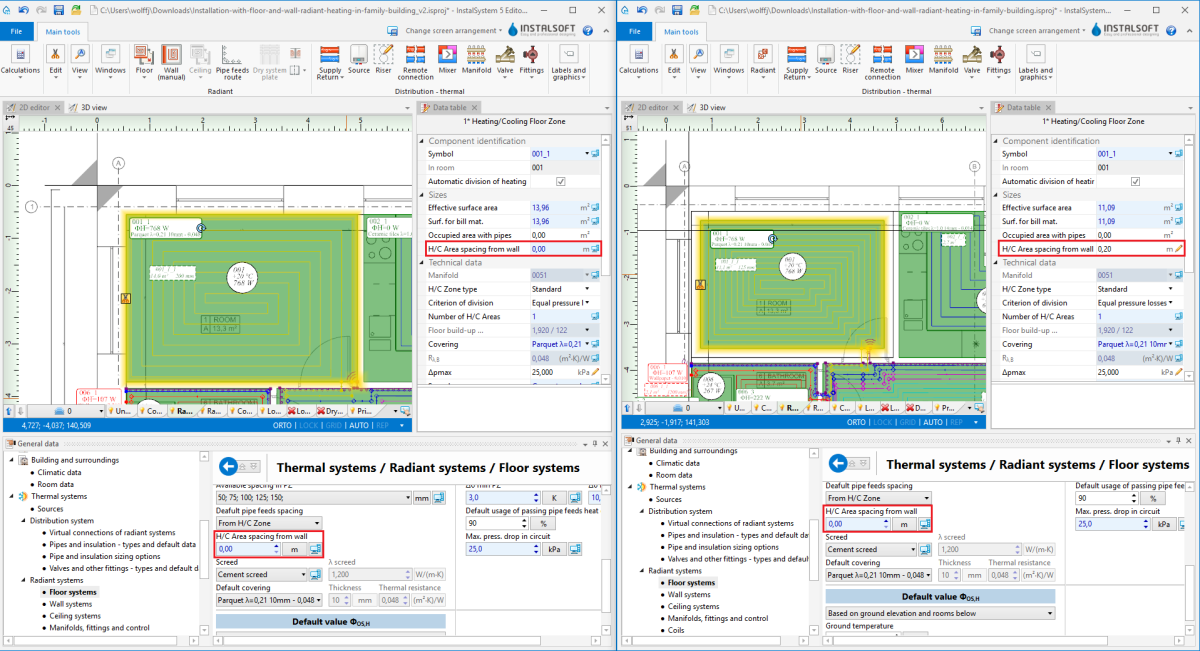

  • Arrangement and size of radiant heaters - larger surface area of a Heating/Cooling Floor Zone enables lowering supply temperature.
    1. Size of Heating/Cooling Floor Zone


    For more information, see: [[{{{link}}}]] Heating/cooling_zone
  • Maximum attainable supply temperature when heat pump is the source.

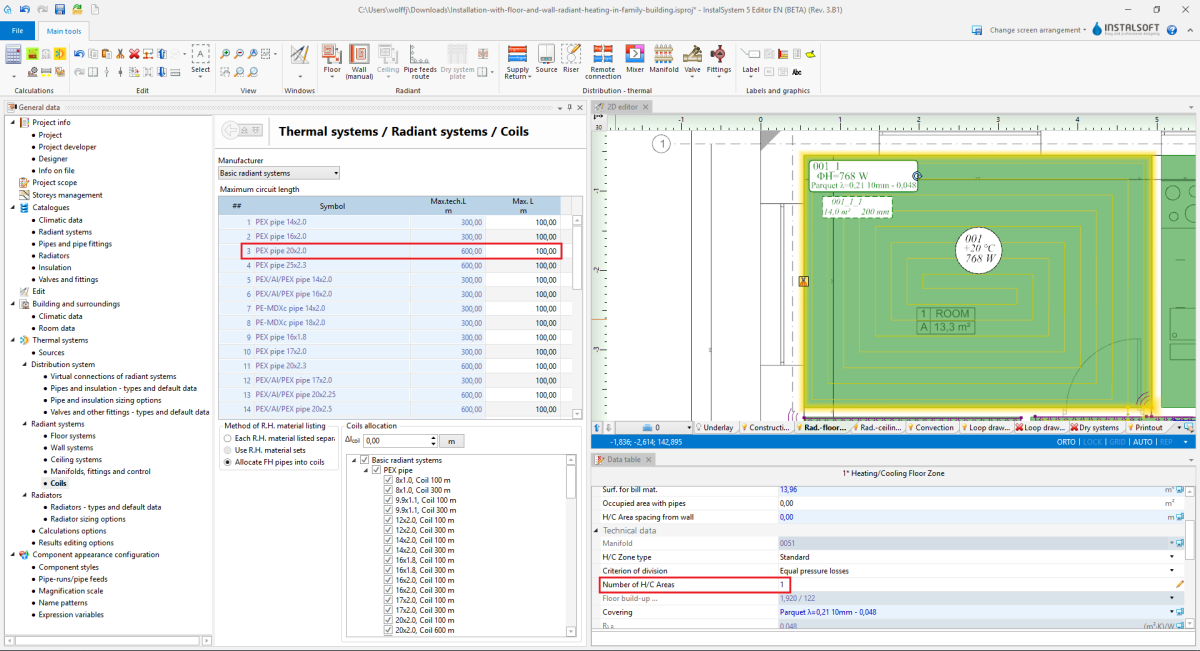

  • Maximum loop length - has effect on flow resistance and manifold size, and thereby also on operating and capital costs.
    2.Max. L

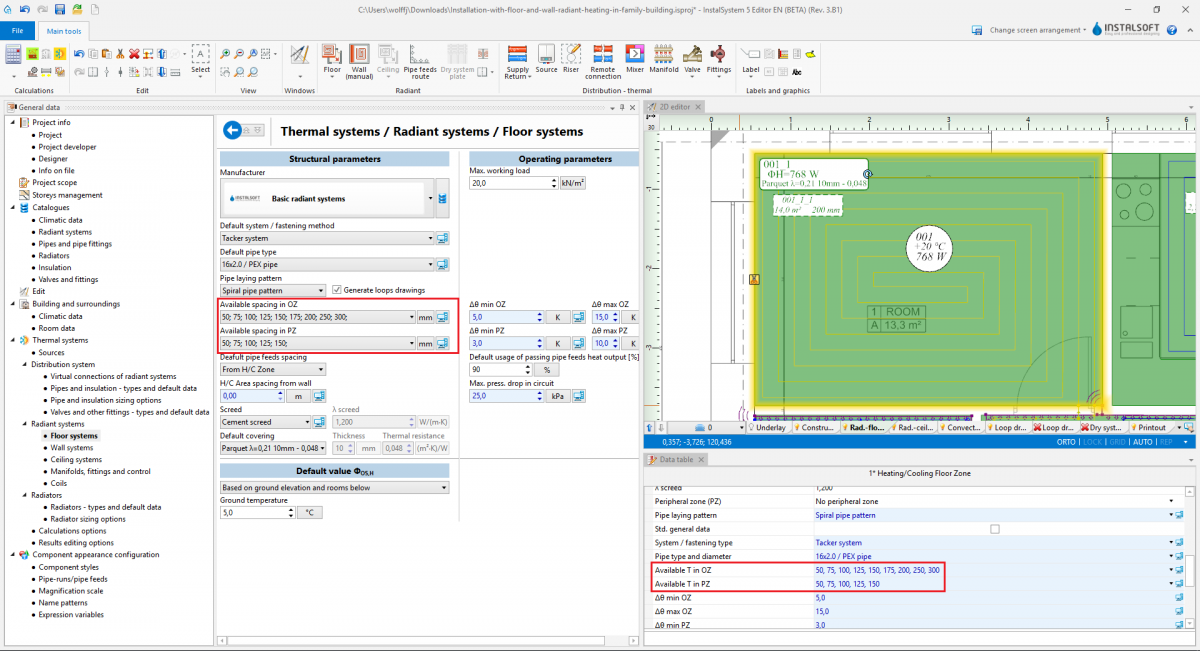

  • Perimissible pipe spacing - has effect on mean surface temperature of radiant heater.
    3. Pipe spacing

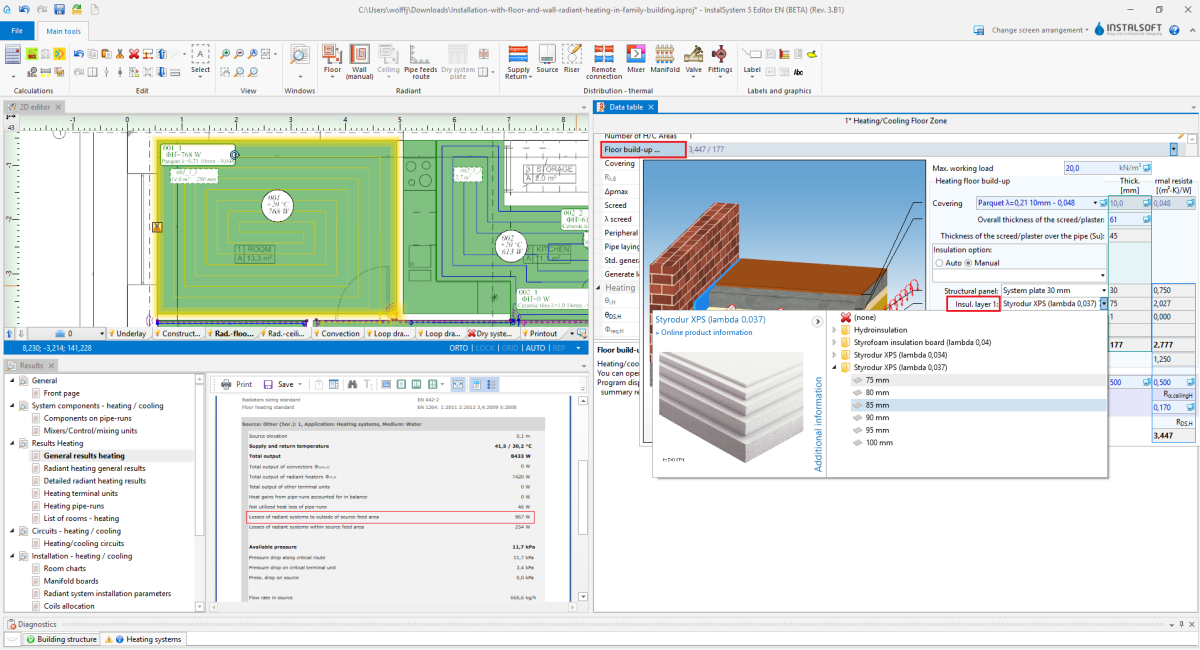

  • Insulation thickness under radiant heater - has effect on Losses of radiant systems to outside of source feed area.
    4. Insulation layer

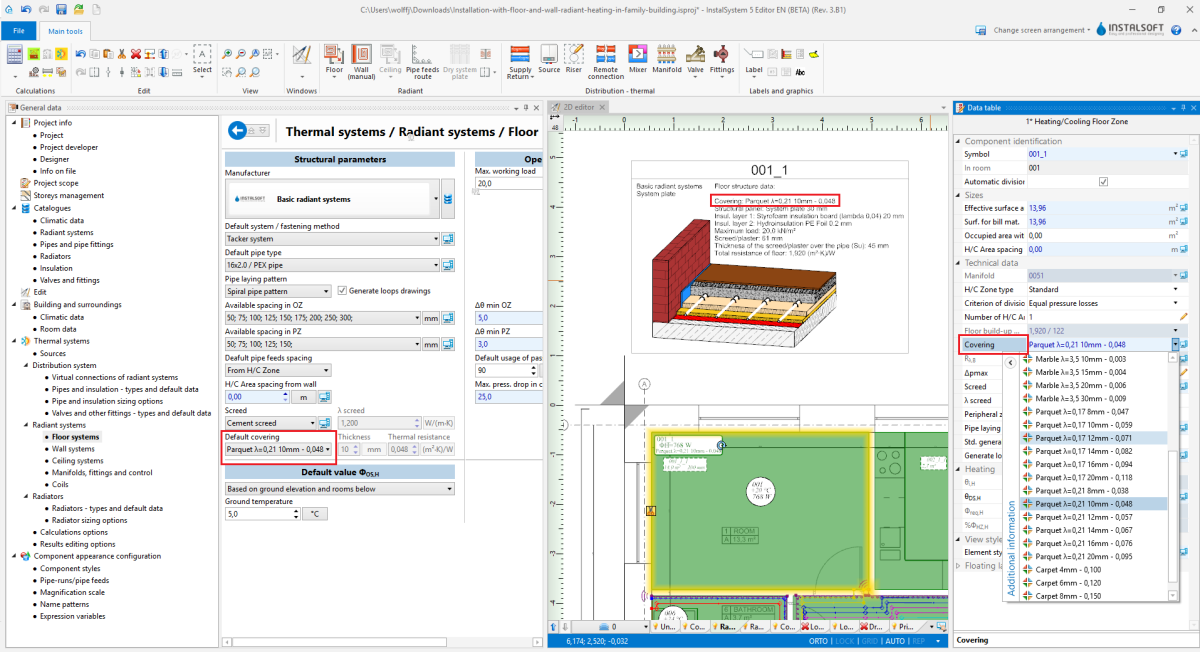

  • Selection of proper Covering in rooms - has effect on radiant heater efficiency and on uniform temperature distribution on heater surface.
    5.Covering

    For more information, see: [[{{{link}}}]] Changing structural parameters

PARAMETERS THAT CAN BE SET/ADJUSTED IN COMPLETED SYSTEM

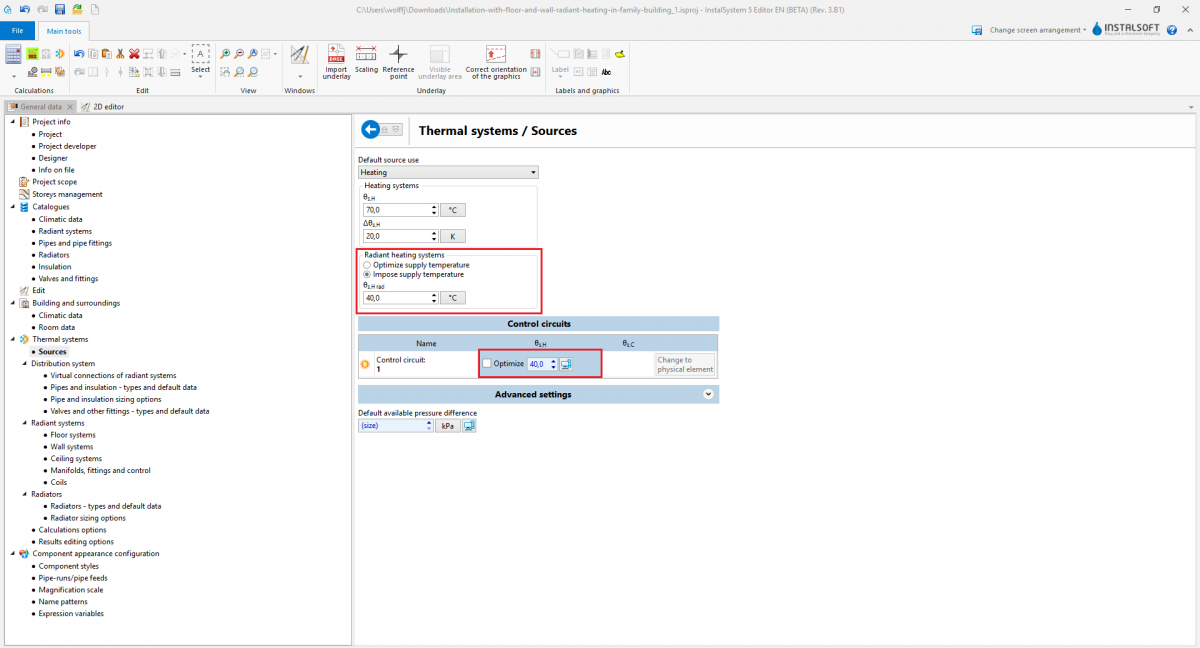

  • Supply temperature, if a system with adjustable temperature is used (e.g. gas-fired water heater with a mixer or a mixing pump set)
    6. Supply temperature

    For more information, see: [[{{{link}}}]] Modifying system parameters to adapt attained output to required output

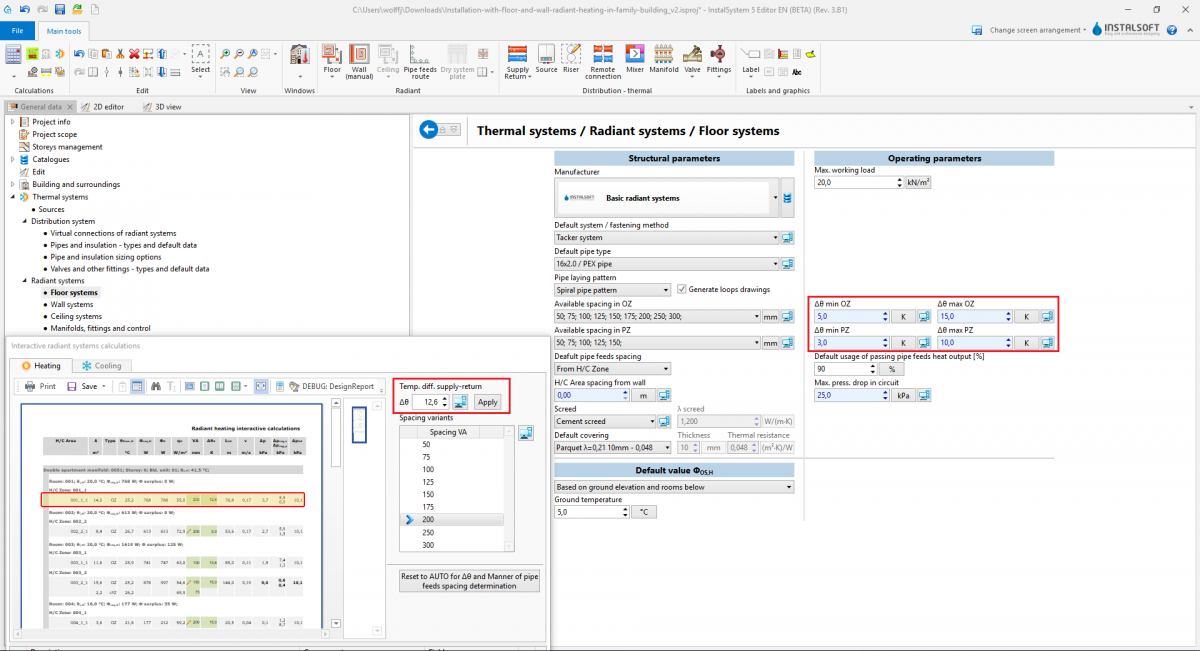

  • Maximum flow rate in floor heating loops - possible by adjusting Δθ min OZ, Δθ max OZ, Δθ min PZ and Δθ max PZ or by specifying Temp. diff. supply-return.
    7. Parameters that have effect on maximum flow rate in floor heating loops

    For more information, see: [[{{{link}}}]] Changing operating parameters
